EDM - DIE SINKING

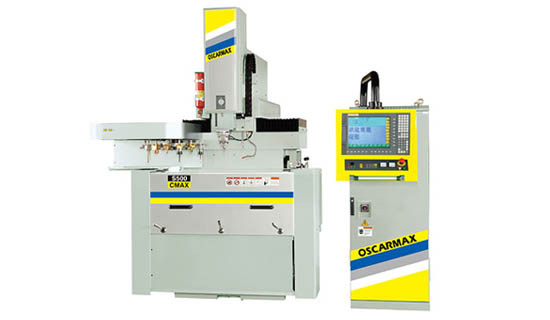

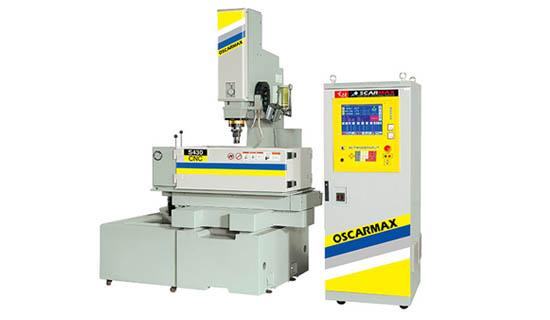

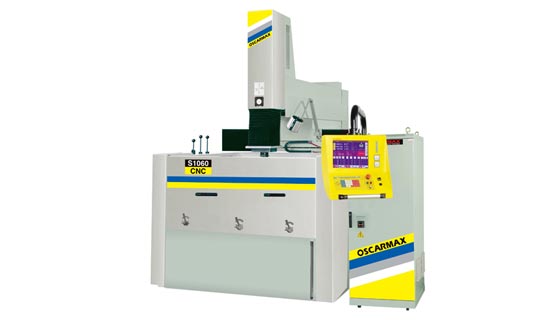

E.D.M Specification

MODEL		UNIT	S430S	S550	S1060
ITEM
WORK TANK	(L) (W) (H)	MM (inch)	990 (39) 565 (22) 380 (15)	1170 (46) 690 (27) 425 (17)	1900 (75) 1100 (43) 625 (25)
WORK TABLE	(L) (W)	MM (inch)	650 (26) 350 (14)	800 (32) 450 (18)	1250 (49) 750 (30)
MAX WEIGHT OF ELECTRICAL			120/550	220/1330	350/4500
TABLE TRAVEL (X)		MM (inch)	400 (16)	500 (20)	1000 (39)
TABLE TRAVEL (Y)		MM (inch)	300 (12)	400 (16)	600 (24)



Power Supply Unit

ITEM	UNIT	60A	90A	120A
MAX. MACHINING CURRENT	A	60	90	120
MAX. POWER INPUT	KVA	4.5	8	12
MAX. REMOVAL RATE	mm3/min	430	700	900
MIN. ELECTRODE WEAR RATIO	%	0.1	0.1	0.1
BEST SURFACE ROUGHNESS	μm/Ra	0.2	0.2	0.2

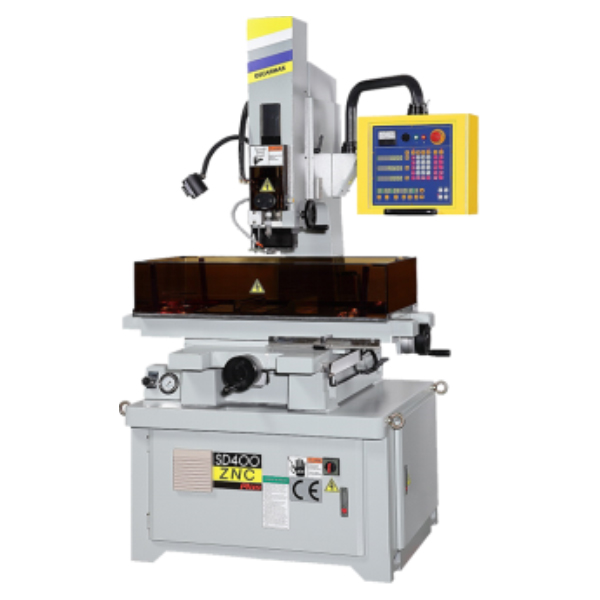

SUPER DRILL MACHINE SD400

Specification

TABLE SIZE	600MM X 30MM
TRAVEL X / Y	400MM X 300MM
TRAVEL W (SERVO)	345MM
TRAVEL Z	200MM

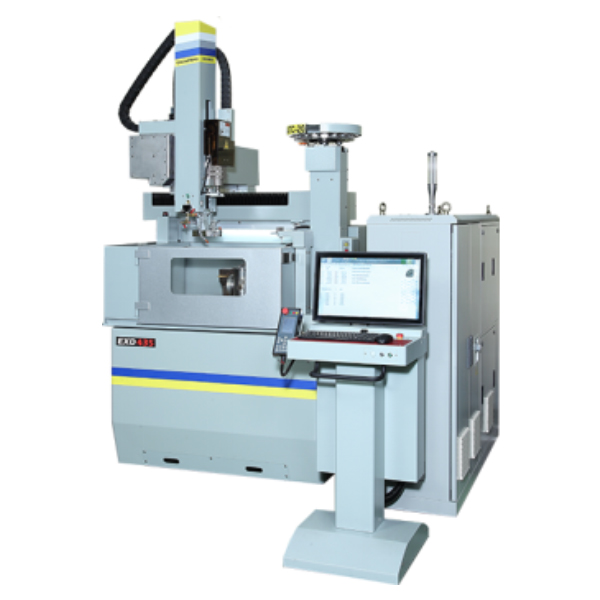

SUPER DRILL MACHINE SUBMERGED TYPE C/W ATC EXD 435

Specification

TABLE SIZE	600MM X 320MM
TRAVEL X / Y	400MM X 300MM
TRAVEL W (SERVO)	500MM
TRAVEL Z	50MM
