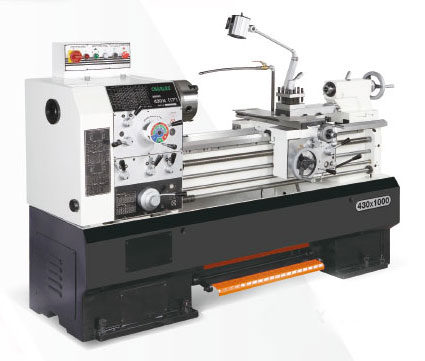

430

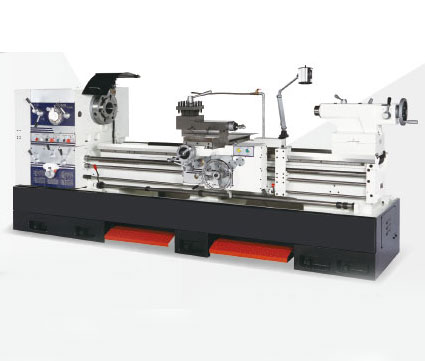

660

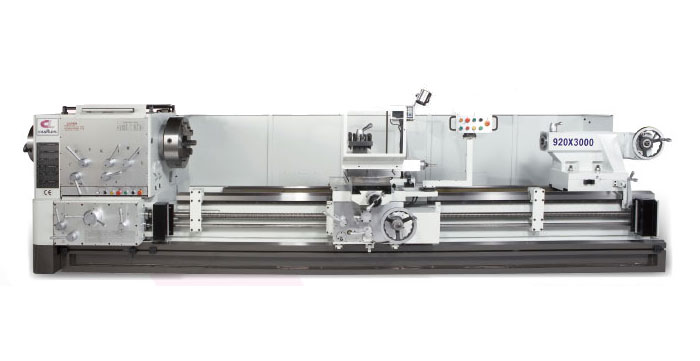

920
| MODEL | UNIT | 430 (V) |
660 (V) |
920 (V) |
|
| ITEMS | |||||
| LATHE | SWING OVER BED | mm | 430 | 660 | 920 |
| SWING OVER GAP | mm | 660 | 880 | 1140 | |
| SWING OVER CROSS SLIDE | mm | 245 | 440 | 580 | |
| DISTANCE BETWEEN CENTERS | mm | 750 / 1000 / 1500 / 2000 | 1,350 / 1,840 / 2,910 / 4,250 | 2,500 / 3,000 / 4,000 / 6,000/ or customized longer | |
| SPINDLE | SPINDLE BORE DIAMETER | mm | 58 | 104 | 156 |
| SPINDLE SPEED | RPM | 20~2,000 / (12 STEPS) | 20~1,200 / (12 STEPS) | 5~420 | |
| CARRIAGE | CROSS SLIDE TRAVEL | mm | 250 | 380 | 460 |
| CUTTING TOOL SIZE | mm | 25 x 25 | 25 x 25 | 32 x 32 | |
| MOTOR | MAIN MOTOR | HP | 5 | 15 | 25 |
