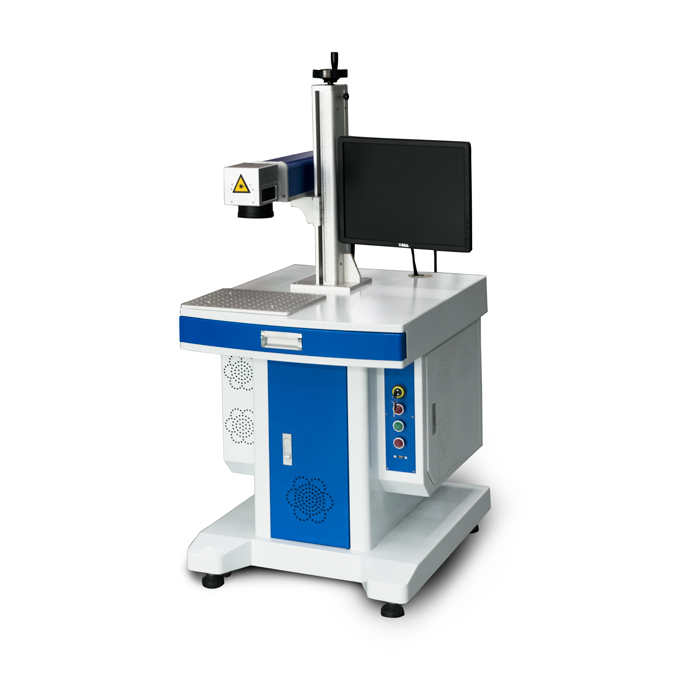

| Model | 3HE-MF20W | 3HE-MF30W |
| Laser power | 20W | 30W |
| laser wavelength | 1064nm | 1064nm |
| Beam quality | <1.3m2 | <1.3m2 |
| Repeat frequency | 20-200KHz | 20-200KHz |
| Engraving range | ≤300mmx300mm | ≤300mmx300mm |
| Engraving depth | ≤1.2mm | ≤1.2mm |
| Marking speed | ≤9000mm/s | ≤9000mm/s |
| Minimum line width | 0.02mm | 0.02mm |
| Minimum character | 0.1mm | 0.1mm |
| Repeat accuracy | ±0.002mm | ±0.002mm |
| Machine power | 800w | 800w |
| Electricity demand | 220v±10%/50Hz/4A | 220v±10%/50Hz/4A |
| Laser module life | >100000h | >100000h |
| Cooling method | Air cooling | Air cooling |

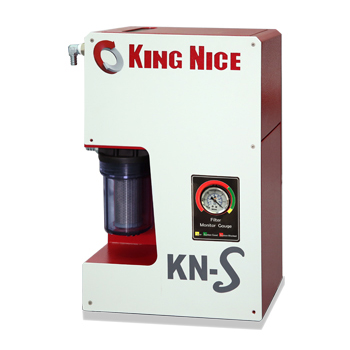

| Model | KN-S |
| Dimension (Machine) | 350 x 220 x 560 (mm) |
| Dimension (Packing) | 520 x 290 x 610 (mm) |
| Net Weight | 23kg |
| GW | 28kg |
| Capacity | 14L |
| Unit Waste Oil Tank | 1.5L |
| Efficiency Capacity | 8 L/min |
| Filter | 500ml |
| Minimum pressure for air pump | 1.6Bar (kgf/cm2) / 2.0kg |
| Optional Perpheral | Extra Waste Oil, Double Filtration |

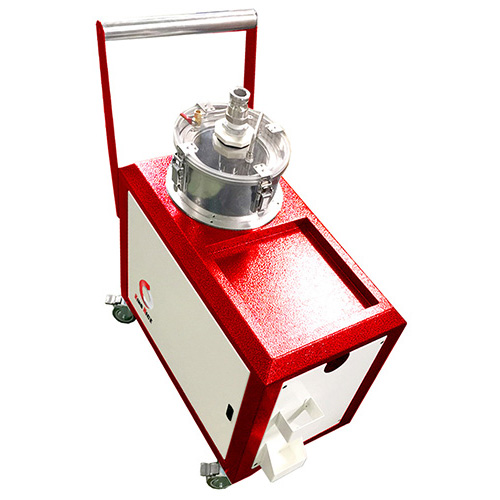

| Model | KN-V300 |
| Size ( W x D x H ) | 845 x 400 x 810 (mm) |
| Dry Capacity | Max. 8L/time |
| Net Weight | 56kg |
| Max Flow | Max.300L/min |
| Air Pump Minimum Pressure | 0.5MPa |
| Max Air | 0.6m3/min |
| Filter | sus |
