CNC Machining Center
Intelligent Vertical Machining Center

Specification

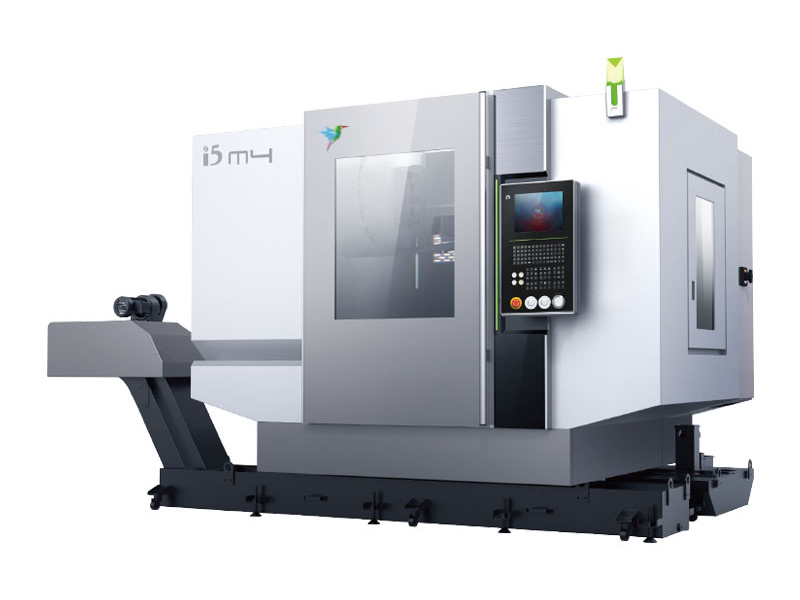

Item	Name	Unit	i5M4.5 x 1000	i5M4.8
Worktable	Dimensions	mm	1200 x 500	1400 x 700
	Max Load	kg	600	1000
	T-slot Size	mmxnum.	18 x 5	18 x 5
Machining Range	X Axis Travel	mm	1000	1300
	Y Axis Travel	mm	610	700
	Z Axis Travel	mm	650	700
Spindle	Taper 7:24	-	BT40	BT50
	Speed	r/min	10,000	6000
	Main Motor Power	kW	11/15	15/18.5
Weight	-	Kg	6800	11500

Vertical Machining Center

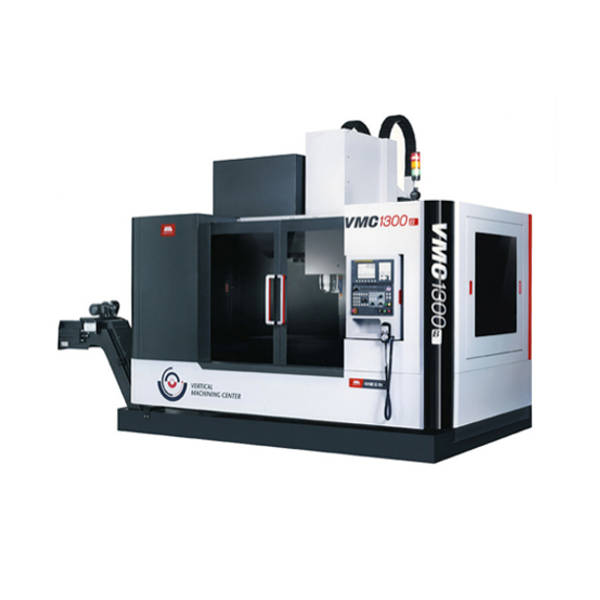

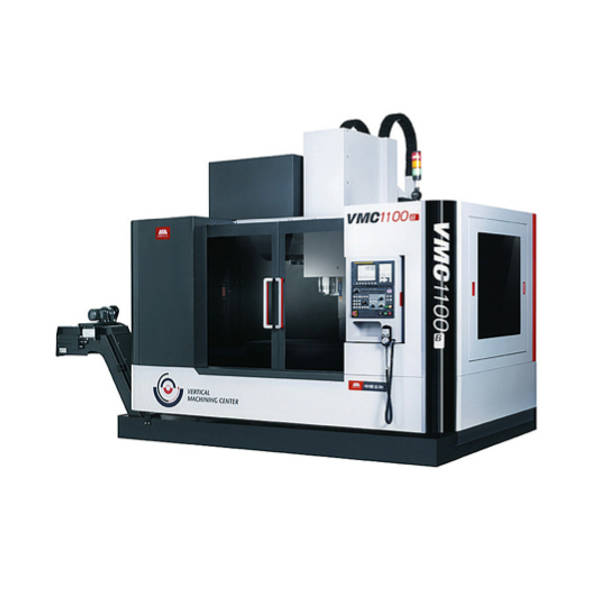

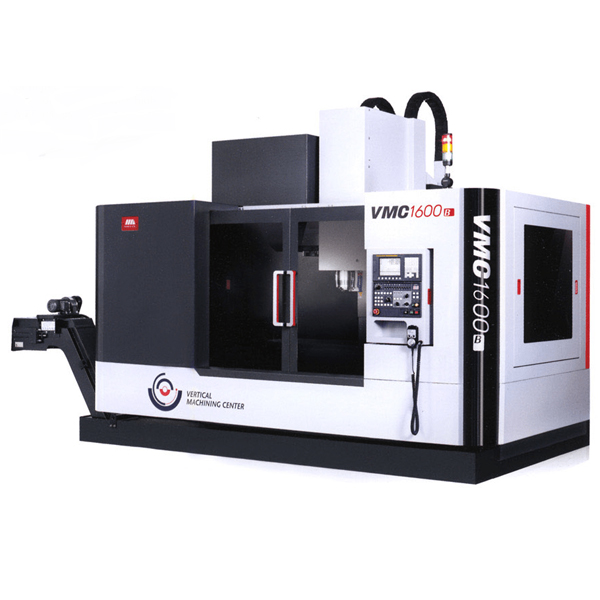

Item	Name	Unit	VMC850B	VMC1100B	VMC1300B	VMC1600B
Worktable	Dimensions	mm	1000 x 500	1300 x 610	1400 x 700	1700 x 800
	Max Load	kg	600	1000	1000	2000
Machining Range	X Axis Travel	mm	850	1100	1300	1600
	Y Axis Travel	mm	560	610	700	800
	Z Axis Travel	mm	650	650	700	800
Spindle	Taper 7:24	-	BT40	BT40	BT40	BT50
	Speed	rpm	10000	10000	10000	6000
	Main Motor Power	kW	11/15	11/15	11/15	15/18.5
Weight		Kg	6800	8000	11000	13500

Specification

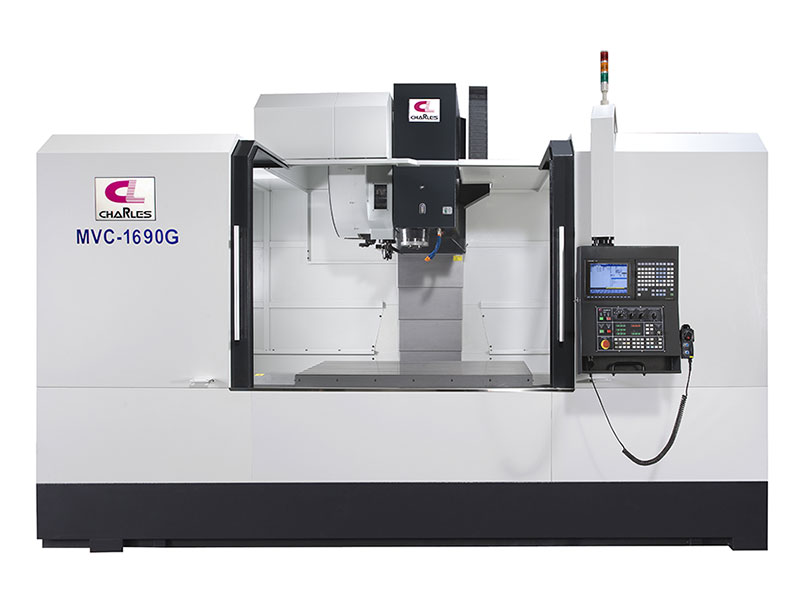

Items / Model		Unit	LVC-860	LVC-1170	MVC-1160	MVC-1690G
Travel	X-Axis Travel	mm	800	1,100	1,100	1,600
	Y-Axis Travel	mm	600	700	600	900
	Z-Axis Travel	mm	600	700	610	800
Table	Max. Table Load	kgs	400	1,500	800	2000
Spindle	Spindle Taper		BT40	BT40	BT40	BT50
Motor	Spindle Motor	HP	15	15	15	25
Net Weight	-	kgs	5,000	9,550	7,700	17,900
