CNC Turning
Interlligent Lathe

Specification

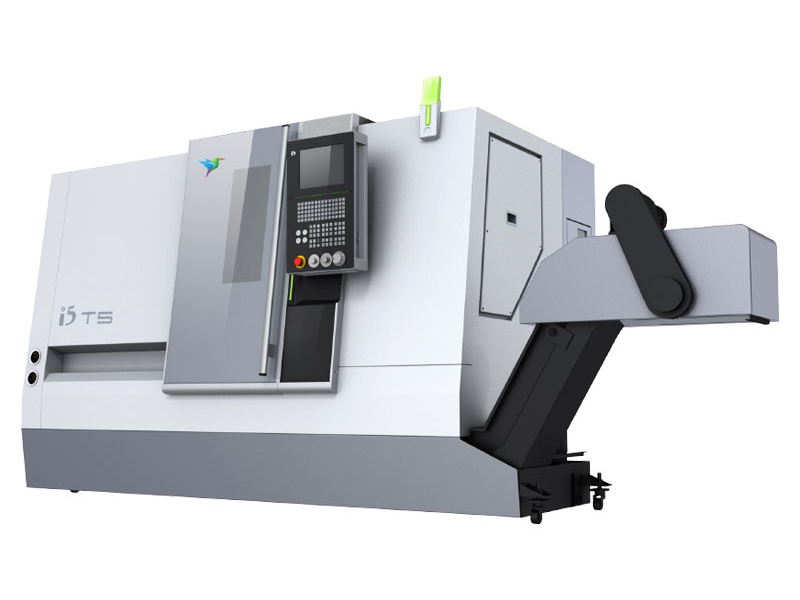

Project	Name	Unit	i5 T5.1	i5 T5.2		i5 T5.4
Main Specification	Max. Swing Over Bed	mm	ø420	ø560	ø560	ø720
	Max. Cutting Length	mm	350	500/1000	500/1000	1500
	Max. Cutting Diameter	mm	ø280	ø350	ø350	ø500
	Max. Swing Over Slide	mm	ø360	ø360	ø360	ø500
Spindle	Nose Type		A2-6	A2-6	A2-8	A2-8
	Max. Spindle Speed	r/min	4500	4500	4000	3000
	Max. Spindle Output Torque	N.m	125 (769 r/min)	178 (730 r/min)	260 (730 r/min)	325 (833 r/min)
	Chuck Diameter	inch	6	8	10	10

CNC Lathe

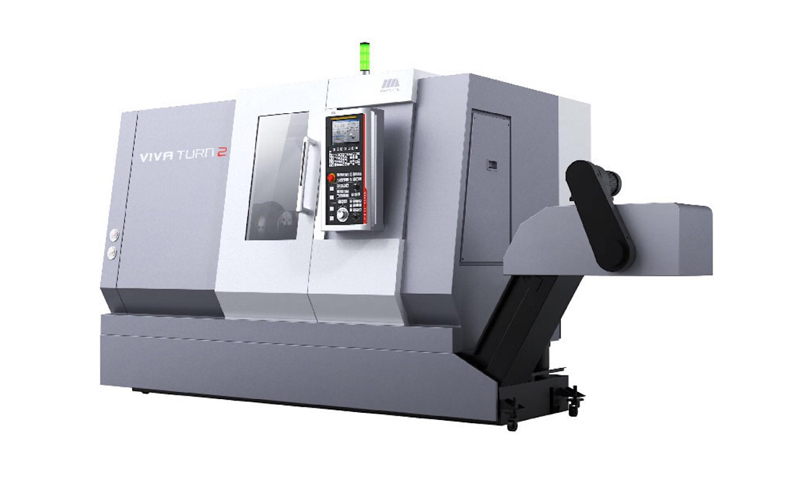

Item	Unit	T2C	T2S
Max Swing Diameter	mm	560	560
Max Cutting Length	mm	350/500/1000	340/490/990
Max Cutting Diameter	mm	280	350
Max Swing Dia.Over Cross Carriage	mm	360	360
Spindle Nose		A2-6	A2-8
Spindle Speed Range	r/min	30-4500	30-4000
Spindle Max Output Torque (15minutes)	N.m	235	290
Chuck Diameter	inch	8"	10"

Specification

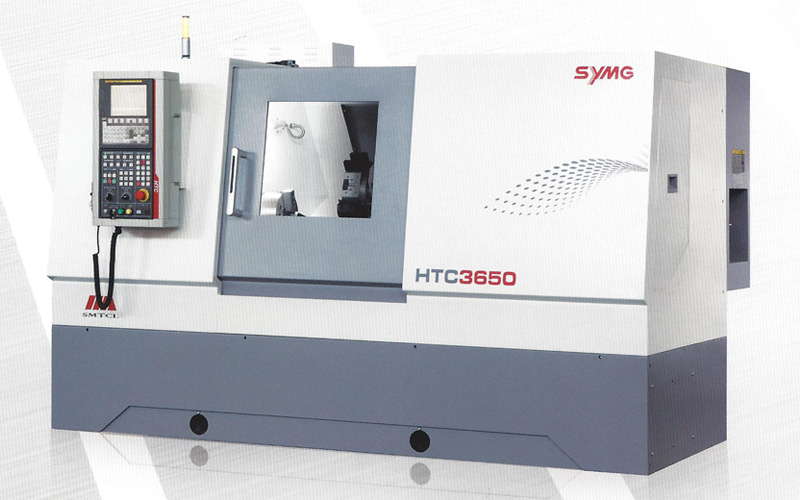

Item		Unit	HTC3650
Max Swing Diameter Over Bed		mm	550
Max Cutting Length		mm	500
Max Cutting Diameter		mm	360
Max Swing Dia.Over Saddle		mm	320
Spindle Nose Type and Code			A2-6
Headstock	Spindle Speed Range	r/min	50~4500
	Max. Output torque of Spindle	Nm	177
Chuck	Chuck Dia./Type	mm	8"

   CNC Lathe

Specification

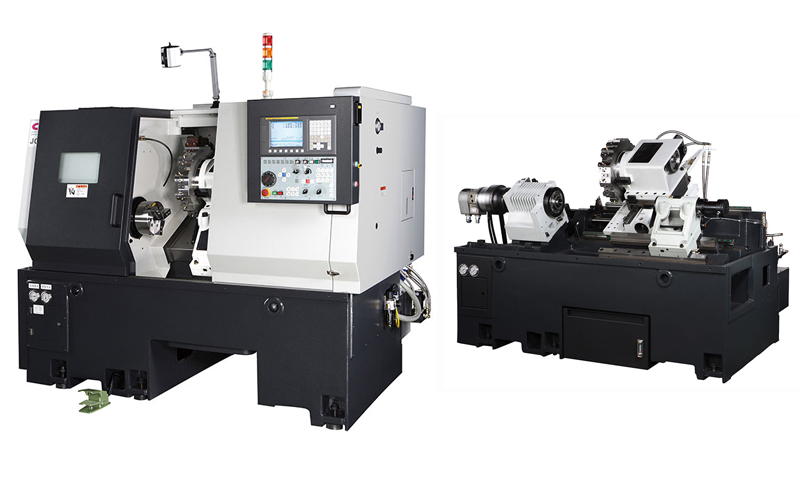

Items / Model		Unit	JG-200	JG-300	JG-300L
CNC Lathe	Hydraulic 3-jaw Chuck		8"	10"
Processing Range	Swing Over Bed	mm	480	670
	Standard Turning Dia.	mm	216	290
	Max. Turning Dia.	mm	320	400
	Max. Turning Length	mm	530	600	1,000
Moving Travel	Bar Diameter	mm	52	75
Spindle	Spindle Nose		A2-6	A2-8
	Max. Spindle Speed	RPM	4,000	3,000
Motor	Spindle Motor	KW	11/15	15/18.5

CNC Lathe

Specification

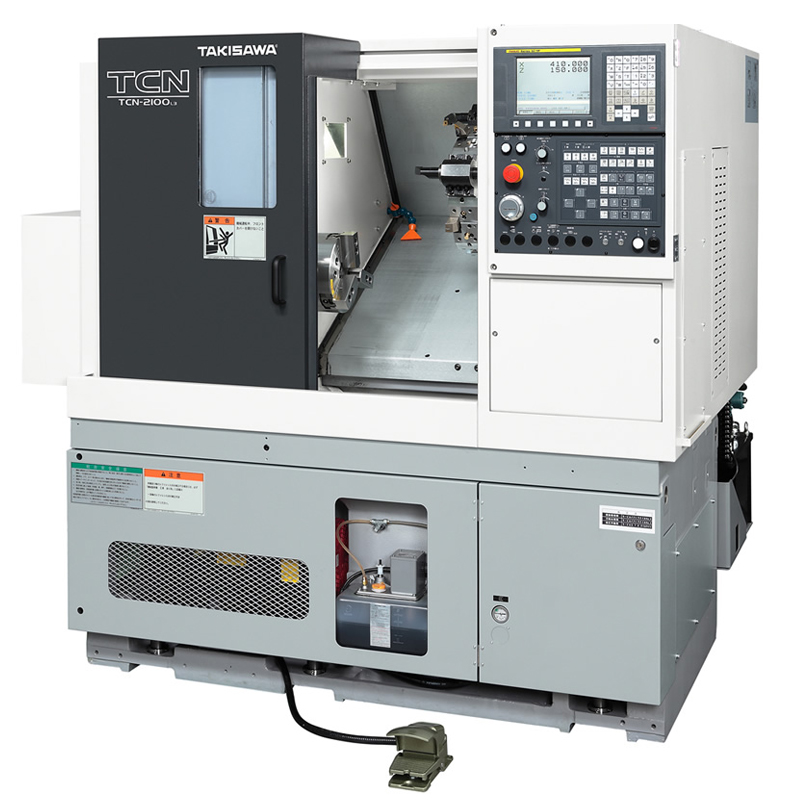

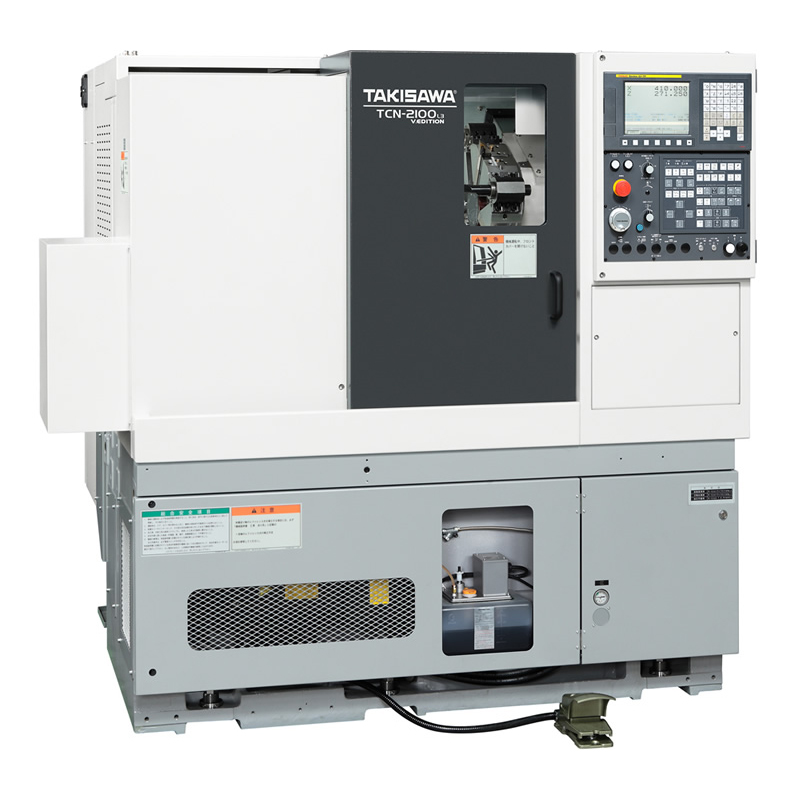

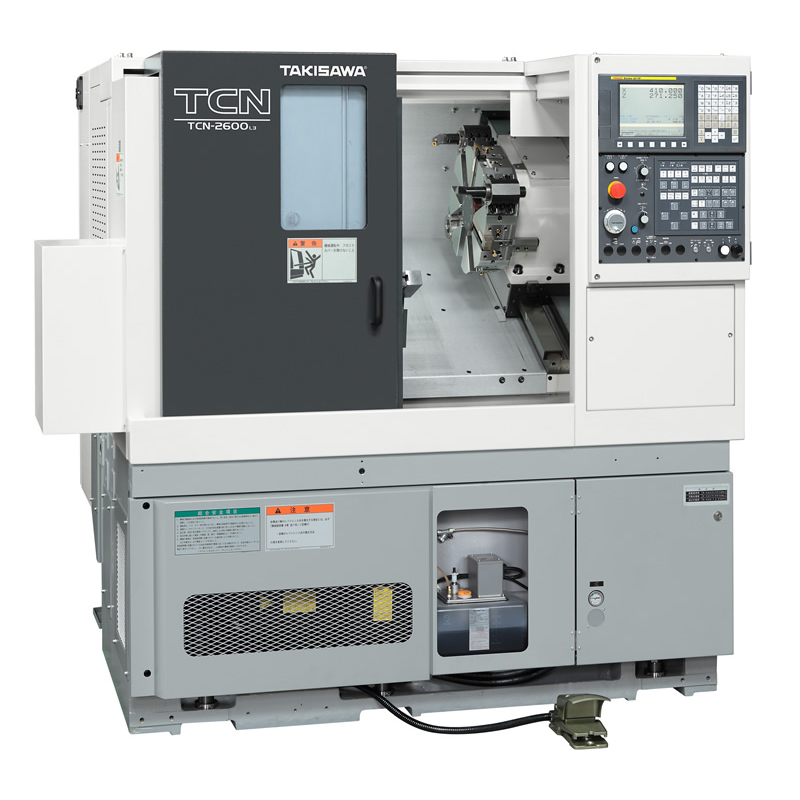

Items	TCN-2100 V.Edition		TCN-2100		TCN-2600
C-C	L3	L6	L3	L6	L3	L6
Max. Turning Diameter	Φ410	Φ410	Φ410	Φ410	Φ410	Φ410
Max. Turning Length	300	600	300	600	250	550
Bar Capacity	51	51	51	51	74 (OP.89)	74 (OP.89)
